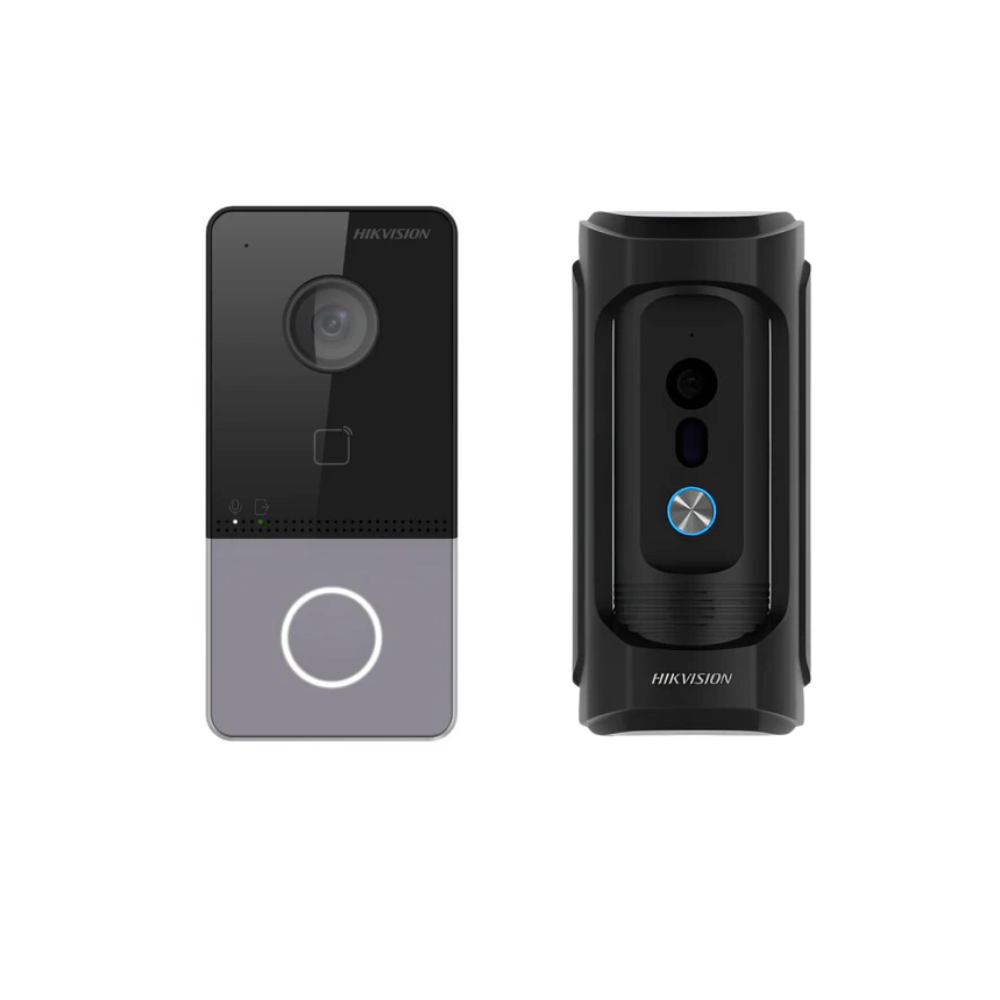

DS-KB8113-IME1(B) & DS-KV6113-WPE1-C Basic Install Guide

DS-KB8113-IME1(B) & DS-KV6113-WPE1-C Basic Install Guide

Plug an Ethernet cable into the back the Hikvision doorbell running from either a POE switch or a POE Injector, (If using a POE injector make sure one side is plugged into your local network)

Download and install the SADP tool

Open the SADP tool and activate the doorbell, it will show as inactive (note: if connecting to an Hikvision NVR use the camera activation password you have used on the NVR)

Once activated Enable DHCP in the SADP tool by click the DHCP button then inserting the password just set and clicking modify, this will allow the doorbell to pickup an IP address from your existing router.

Now we need to login to the GUI using the IP Address just set by typing said IP address into a browser i.e 192.168.1.100 the hikvison doorbell login page should now open, you need to login using admin as the username and then password set as above.

You should now be presented with the live view of the doorbell. We need to click the configuration tab and then on the left hand side there is a tab that says network, click this then we want advanced and then a heading tab that says platform access, we need to enable Hik connect and enter an encryption key then click save

We now need to download the Hik Connect app from your phones app store and register an account. Once this task is completed we need to add the doorbell by scanning the QR code, this can be done by pressing the the + button on the top right of the screen.

Once done press the call button on the doorbell and test the device is calling the mobile.
