Ajax

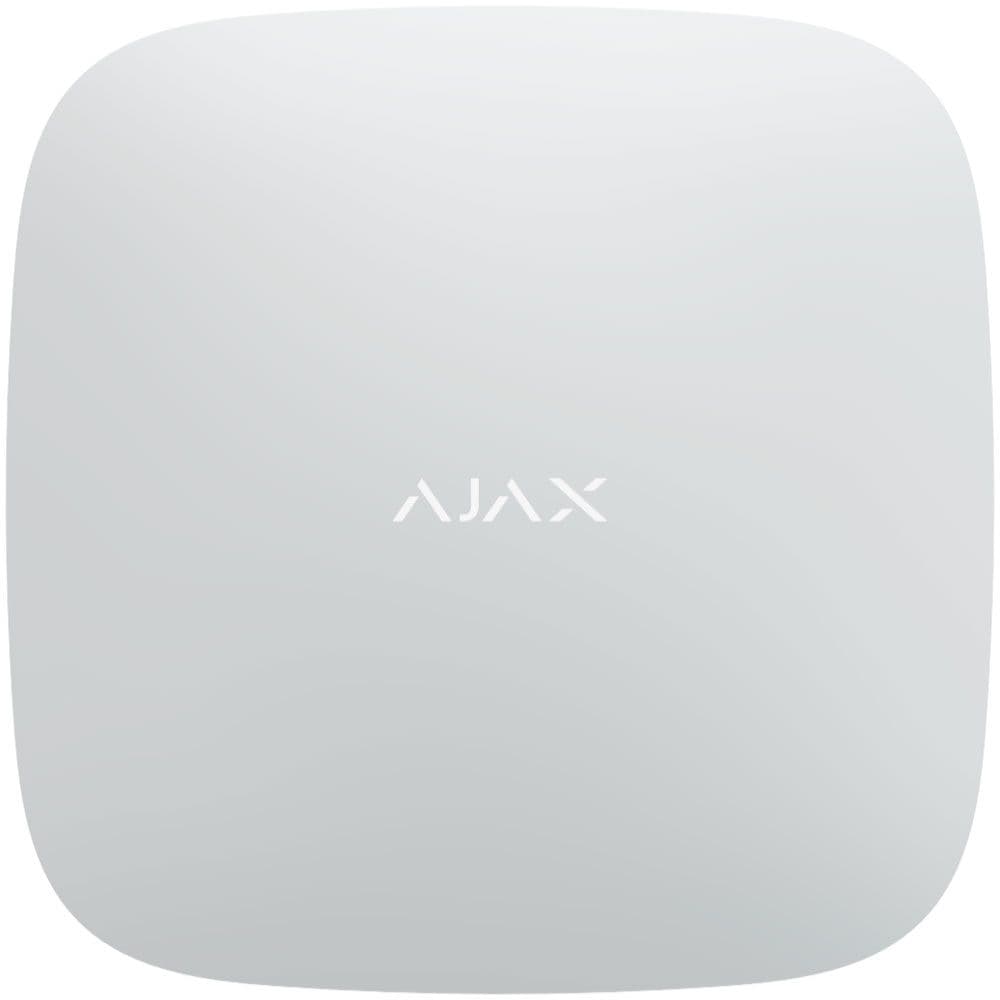

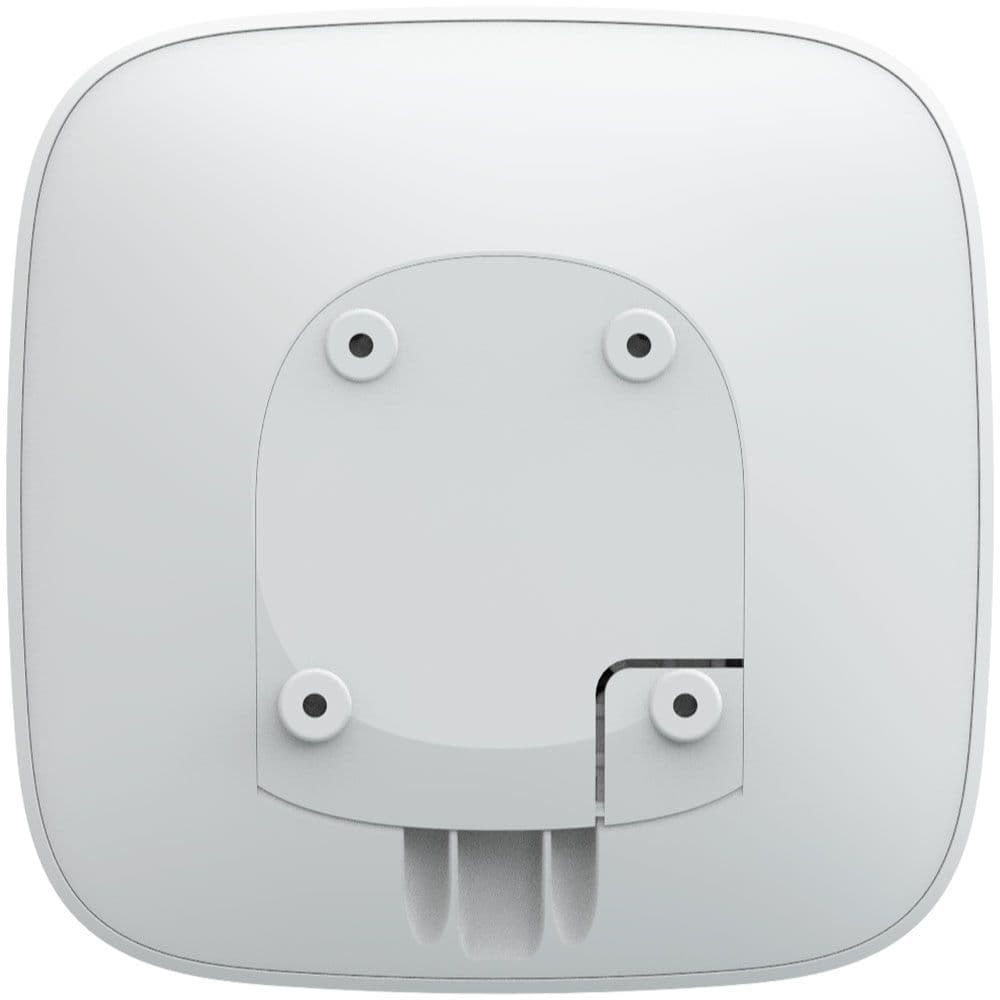

Ajax Hub 2 (4G)

Ajax Hub 2 (4G)

SKU: {{ Item Code }}:34720.108.BL1

Last Few Available

Regular price £ 242.79 Incl VAT
Regular price Sale price £ 242.79 Incl VAT
☆ STAR BUY ☆ Sold out
VAT included. Free Next Day Delivery. If you spend over £150 order before 3pm.
Color

Ajax Hub 2 (4G)

The Ajax Hub 2 is a security system control panel that supports photo verification of alarms. It controls the operation of all connected devices and interacts with the user and the security company. The device is designed for indoor installation only.

The hub reports doors opening, breaking of windows, the threat of fire or flood, and automates routine actions using scenarios. If outsiders enter the secure room, Hub 2 will send photos from MotionCam / MotionCam Outdoor motion detectors and notify a security company patrol.

Hub 2 needs internet access to connect to the Ajax Cloud service. The control panel has three communication channels: Ethernet and two SIM cards.

Main Features

  • Frequency hopping against jamming
  • Tampering alarm
  • Up to 16 hours on a backup battery
  • Over the air updates
  • Remote setup and control via smartphone and desktop apps
Specification
Colour White, Black
Compliance EN 50131 (Grade 2), PD 6662:2017
Communication channels 2G (GSM900/DCS1800 (B3/B8))
3G (WCDMA850/900/2100 (B1/B5/B8))
LTE (FDD B1/B3/B5/B7/B8/B20)
Ethernet
CMS connectivity SurGard
(Contact ID)
SIA (DC-09)
Other proprietary protocols
Communication protocols Jeweller: two-way
encrypted
communication of
events and alarms
Wings: two-way
encrypted
communication of
photo verifications
Radio communication range up to 2,000 m (Jeweller)
up to 1,700 m (Wings)
Maximum effective radiated power (ERP) ≤ 25 mW
Alarms delivery speed 0.15 seconds
Photos delivery
speed
9 seconds (default settings)
Power supply 110–240 V, 50/60 Hz
Backup power supply Li-Ion 2 Ah (up to 16 hours of autonomous operation)
Operating temperature
range
from –10°С to +40°С
Operating humidity up to 75%
Overall dimensions 163 × 163 × 36 mm
Weight 362g
