Ajax KeyPad
Ajax KeyPad
SKU: {{ Item Code }}:AJX-KP-22672
Last Few Available

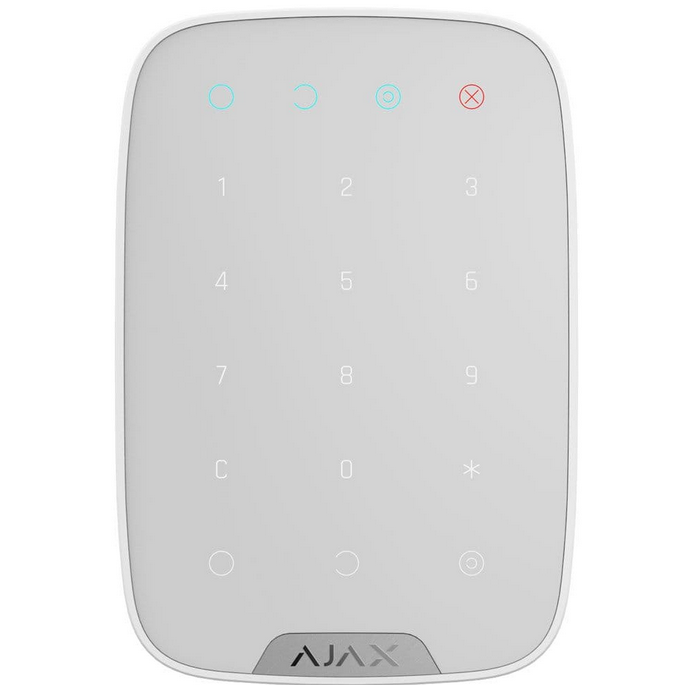

Ajax KeyPad

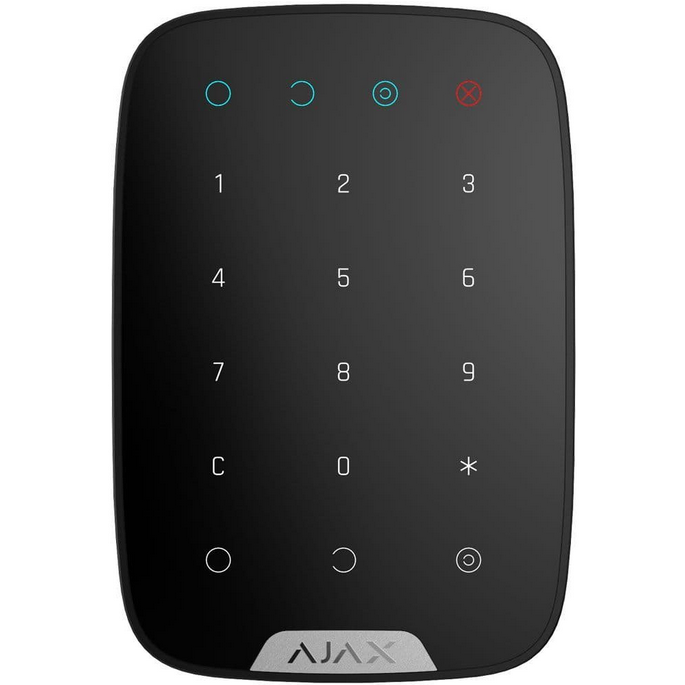

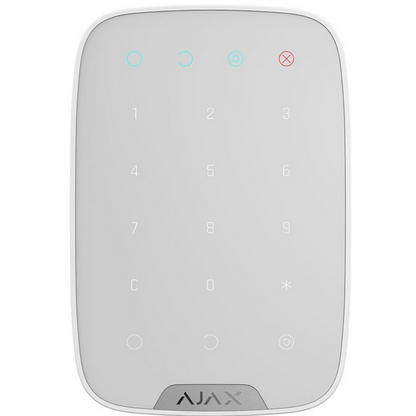

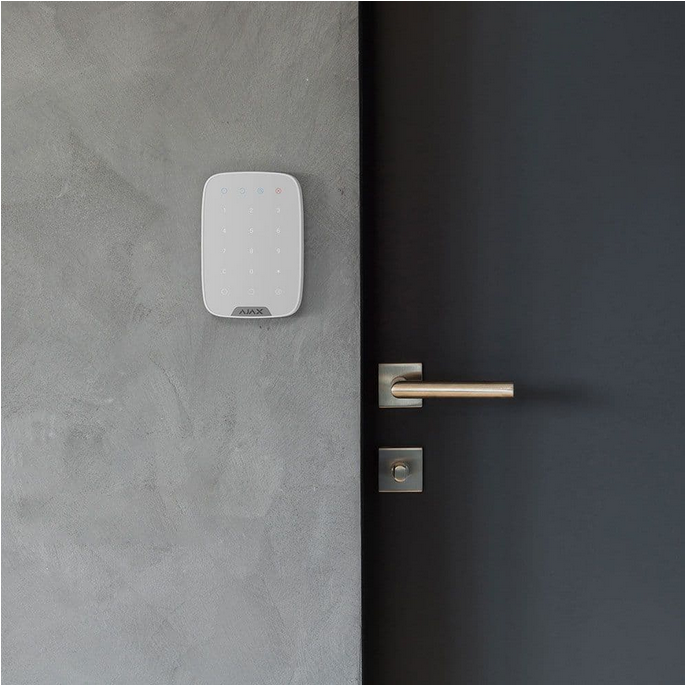

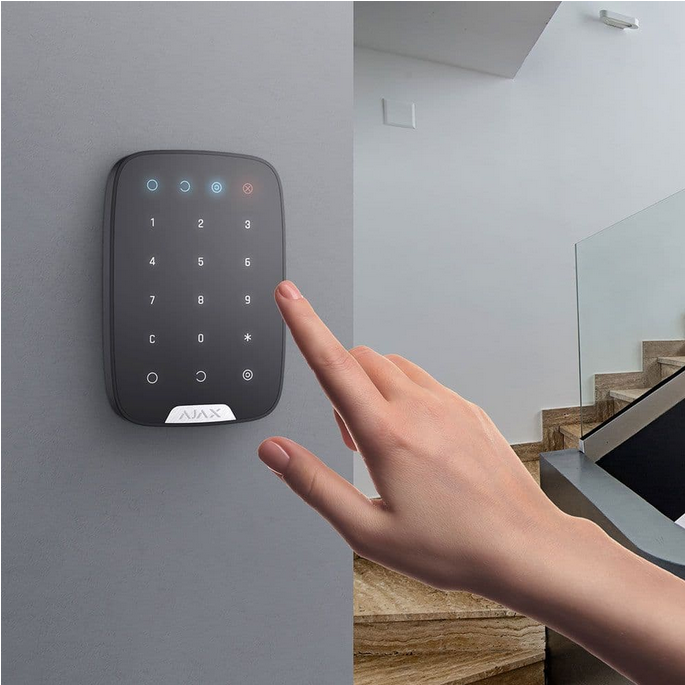

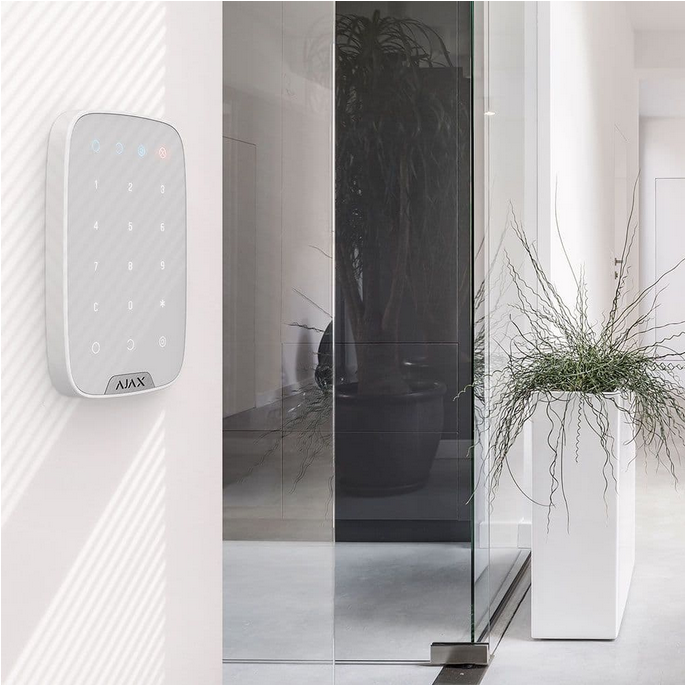

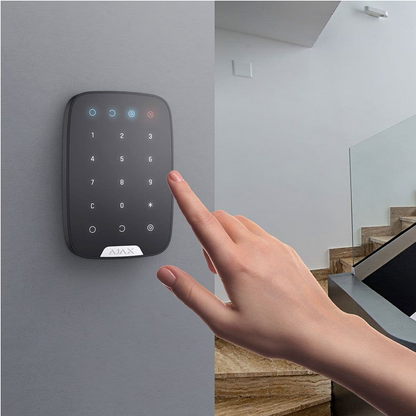

Wireless touch keypad is used for arming/disarming of Ajax security system. It is mounted in the room near the entrance door to provide quick access to the keypad.
Features
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
- The device activates the full security mode by pressing one button
- If the robber tries to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station
- The keypad is blocked automatically if the incorrect code is entered too many times
Principle of operation
The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub.
Alarm button is available. It notifies of each attempt to guess the password and blocks automatically if the permissible number of entries is exceeded.
Installation and set up

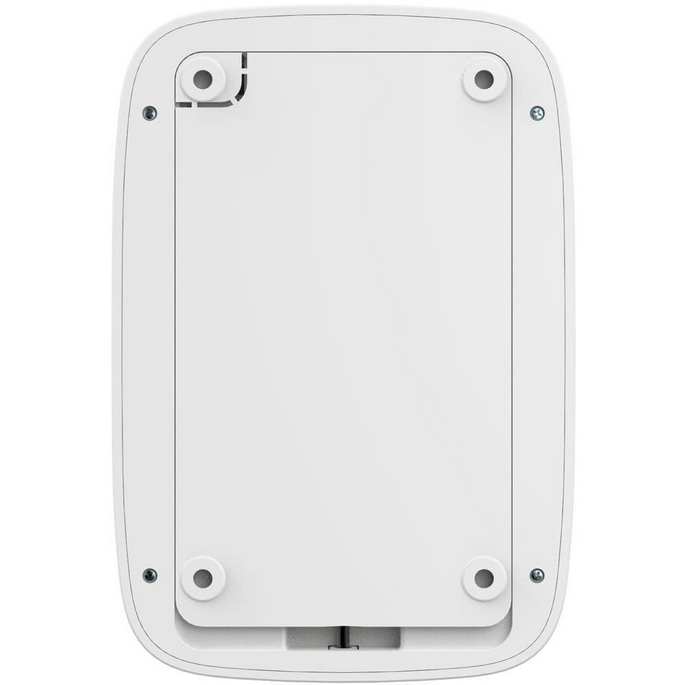

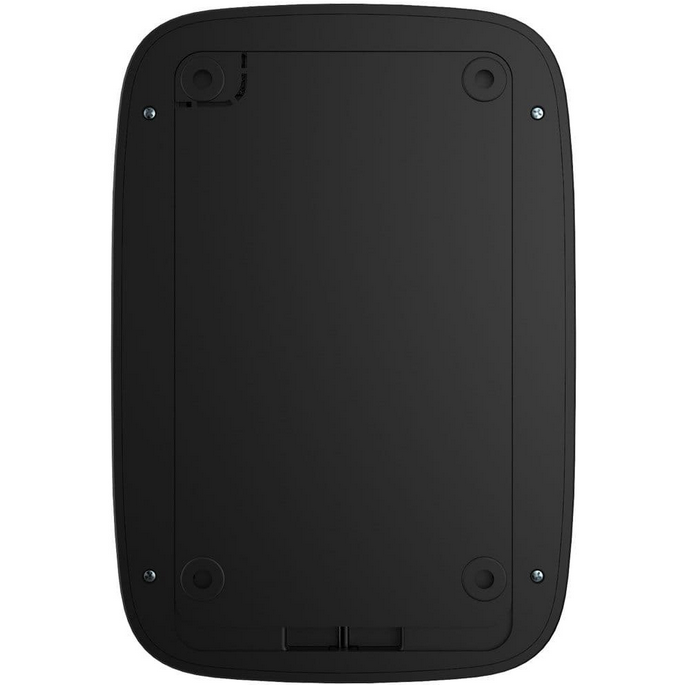

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the keypad. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Technical Specifications
- Classification: Radio channel touch keypad
- Type of keypad: Wireless, touch
- Installation method: Indoors
- Compatibility: Operates with all Ajax hubs, and range extenders
- Number of buttons: 15
- Duress code: Yes
- User Passcode: Yes
- Protection against passcode guessing: Yes
- Arming/disarming indication: Yes
- Power supply: Battery: 4 × ААA batteries, 3 V (batteries are installed in pairs)
- Battery life: Up to 2 years
- Jeweller radio technology: Communication range with central unit — up to 1,700 m in an open space, Two-way communication between devices, Operating frequencies — 868.0 - 868.6 MHz, Self-adjusting RF output power — up to 20 mW, Block encryption based on AES algorithm, Keypad scanning period — 12 - 300 s
- Temperature sensor: Available
- Operating temperature range: From -10°С to +40°С
- Permissible humidity: Up to 75%
- Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant
- Remote setting and testing: +
- Dimensions: 150 × 103 × 14 mm
- Weight: 197 g
- Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
- Complete set: KeyPad touch keyboard, SmartBracket mounting panel, 4 ААА batteries (pre-installed), Installation set, User's guide
- Service life: 10 years
